Ceiling hoods - SCL 2xR700


SCL 2xR700


The success in ceiling hoods

Installation Kit Included

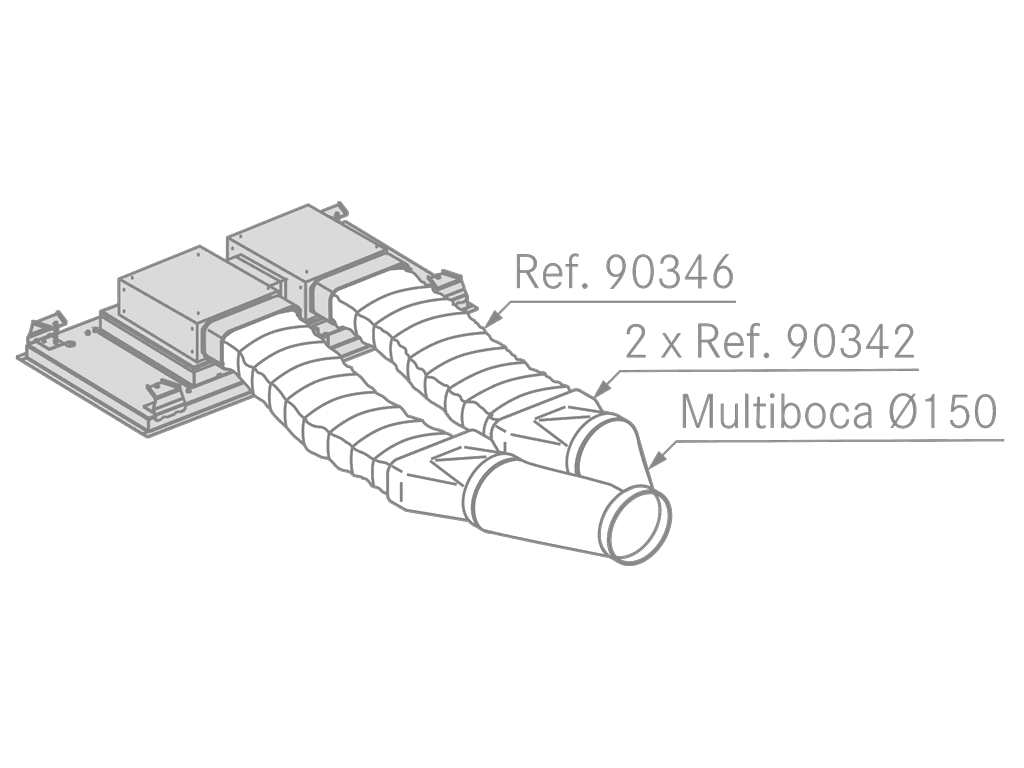

The SCL hood is delivered with the basic installation kit. This kit is composed of a round nozzle (ref. 90381), one metre of flexible piping (ref. 90346) and two adaptors from flat to round Ø150 (ref. 90342).

Flush mounted

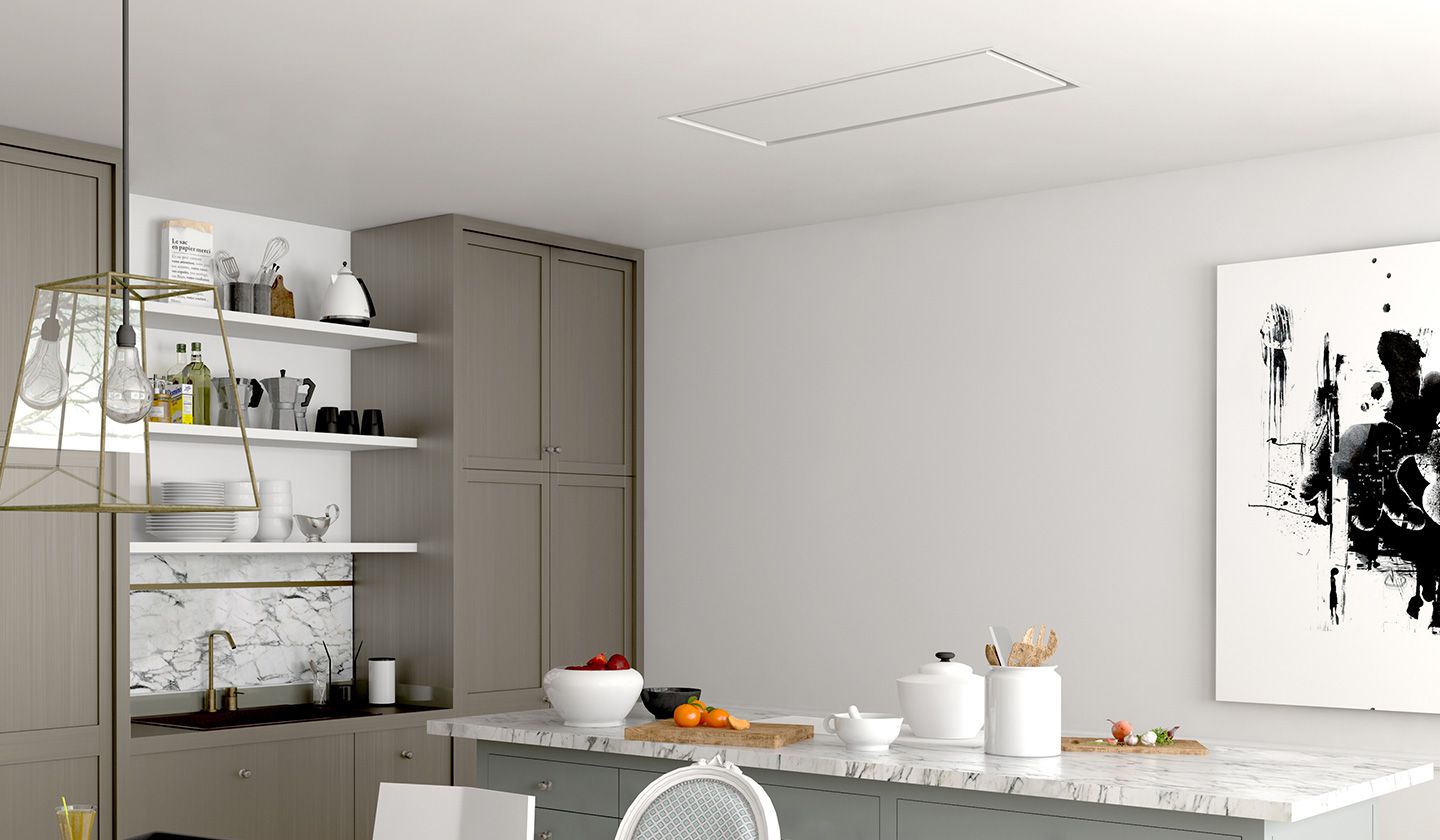

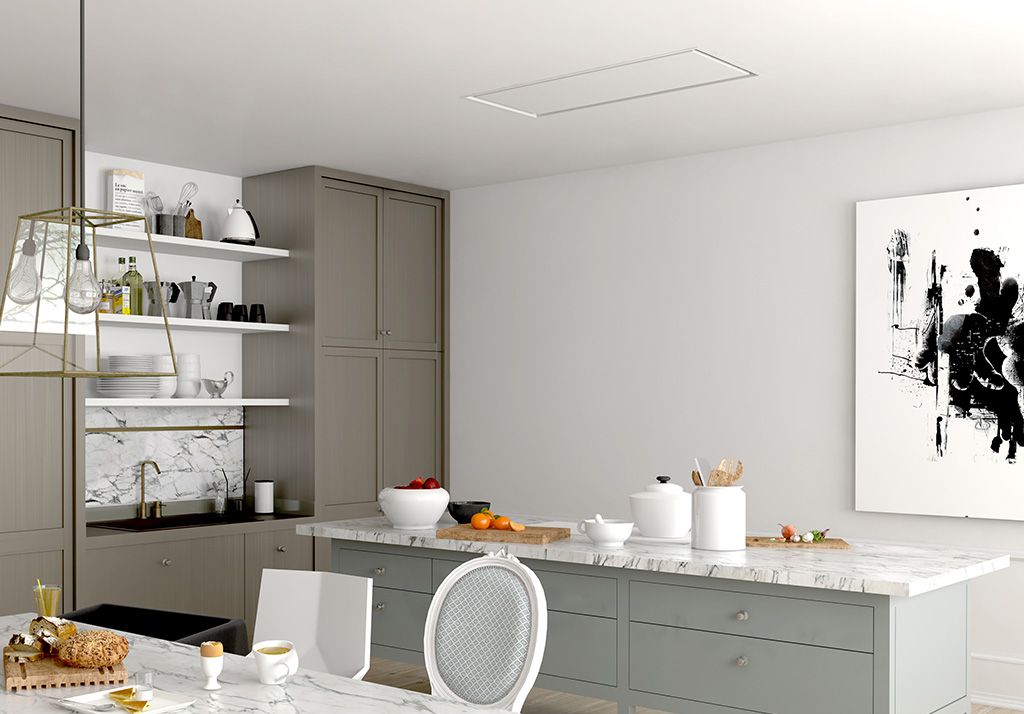

Due to its design, this ceiling-mounted hood is flush with the ceiling, eliminating unattractive shadows and improving aspiration.

Due to its small size the Frecan SCL hood is installed directly on the technical ceiling, which must be reinforced in the event of not being able to support a weight of 25/35 kg.

The SCL model has mounting clips, meaning it can be installed easily, quickly and effortlessly.







Highlights

• Compatible with H-Connect hobs.• Silence Motors R700.• Remote control included.• Deferred stop (Last Time).• Easy fix tabs system.• Minimum height for technical ceiling 160 mm. (2 R700 fans)

Technical information

Models

  • 900x500-WH-2 x R700 Internal M.

Downloads

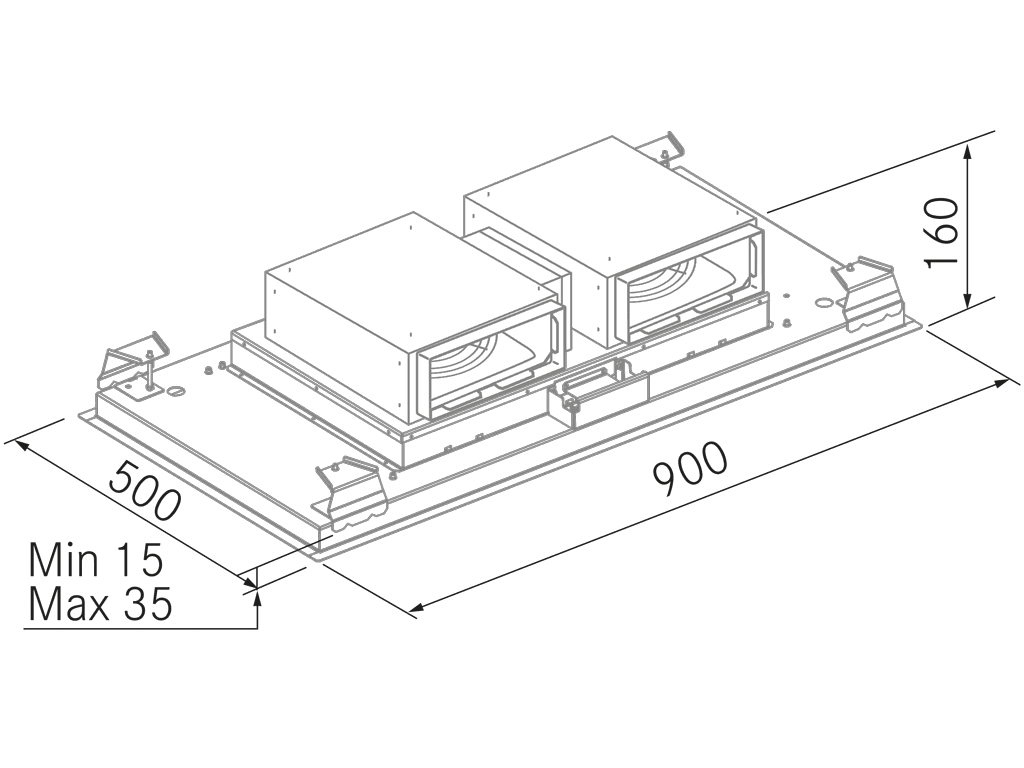

Technical design

Range Hoods - SCL 2xR700 - Technical design

900 - Air Outlet 220 x 90 mm. o Ø150 mm.
Built-in dimensions: 870 x 470 mm
Installation in fake ceiling.

Range Hoods - SCL 2xR700 - Technical design


Optional items



Extra information

R700 Kit
R700 Kit
Round multinozzle.
Round multinozzle.
