Surface hoods - Flow 5


Flow 5


Let everything flow

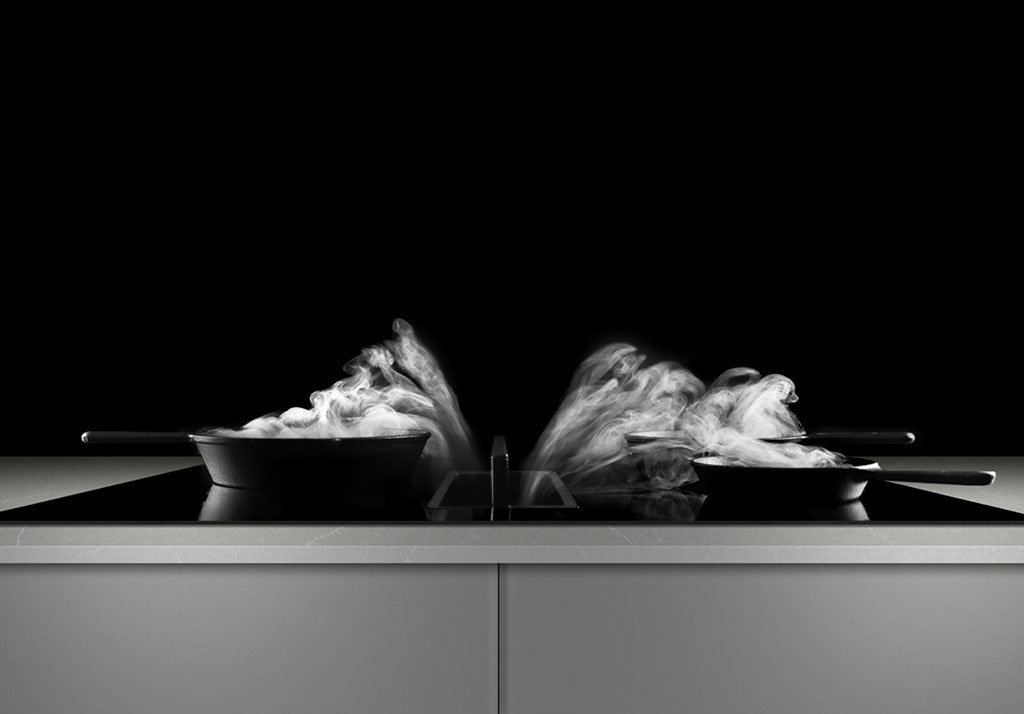

Induction hobs with suction system Integrated Flow 5 thanks to their design, they produce a high-speed air flow that generates a great attraction effect for a kitchen without odours.

The new Flow 5 models are available in 3 and 4 zones, and with their bridge mode they allow cooking by creating large cooking areas.  - Watch Video -





Highlights

• Motor silence R1300.• Touch control.• Deferred stop (Last Time).• Filter saturation alarm.• Possibility of installation in wall-mounted kitchens.

Technical information

  • • Motor silence R1300.

  • • Touch control.

  • • Deferred stop (Last Time).

  • • Filter saturation alarm.

  • • 9 + 1 power levels.

  • • Installation flush mounted or inset.

  • • Possibility of installation in wall-mounted kitchens.

  • • Recirculation through carbon filters included.

  • • Liquid tray.


  • Technical information Hob

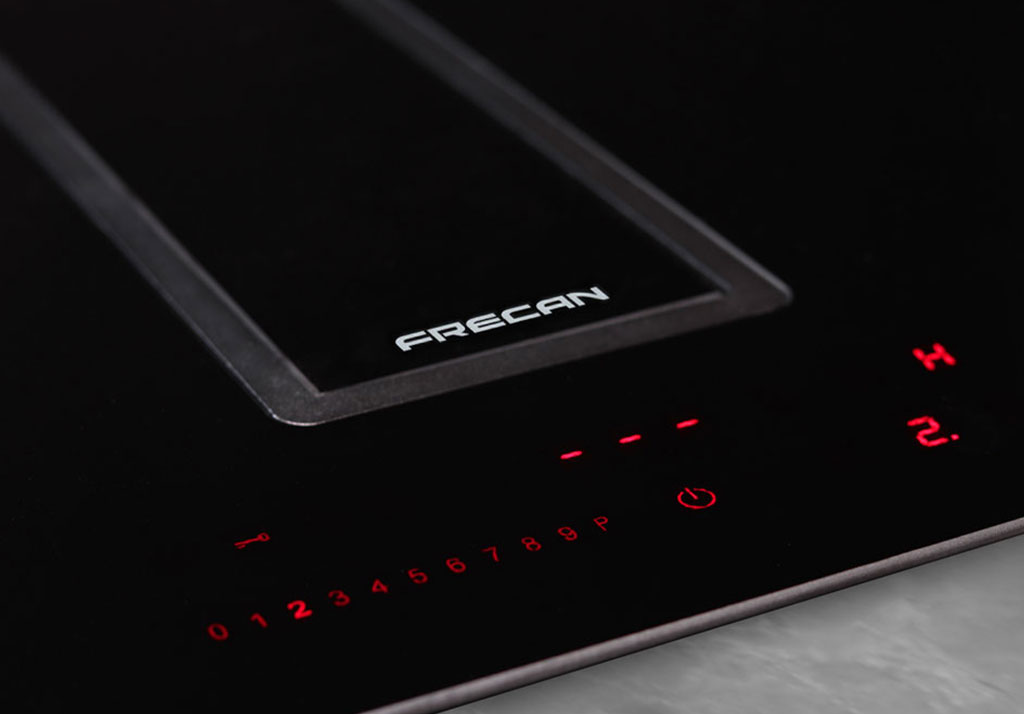

    • Touch control with Slider
    • 9 power levels in each zone
    • Bridge function (Bridge in right area)
    • Power Boost function
    • Recall function
    • Stop & Go function
    • Timer function in each zone.
    • Independent timer
    • Keep warm function
    • Heating function.
    • Automatic container detection
    • Residual heat indicator
    • Security lock

    Cooking zones


    • Left Ø250 mm. 2100 W. - Power Boost 3000 W. (Flow 53)
    • Rear Left 210x190 mm. 2100 W. - Power Boost 3000 W. (Flow 54)
    • Front Left 210x190 mm. 2100 W. - Power Boost 3000 W. (Flow 54)
    • Rear Right 210x190 mm. 2100 W. - Power Boost 3000 W.
    • Front Right 210x190 mm. 2100 W. - Power Boost 3000 W.
    • Maximum total power 6700 W.

Models

Downloads

Technical design


Range Hoods - Flow 5 - Technical design
780 - Air Outlet 222 x 90 mm
Built-in dimensions: 760 x 490 mm
• Leave a fix space of 40 mm from the wall to the edge of the hood and 50 mm to the cut out.

Optional items
