Hobs with suction system Integrated Flow 54

Let everything flow

New induction hobs with Flow 5 integrated aspiration system. - Watch Video -

Flow 54 Slider Bridge
4-zone induction hob that brings sophistication and refinement to your kitchen thanks to its discreet screen printing and fully backlit control.

Airflow

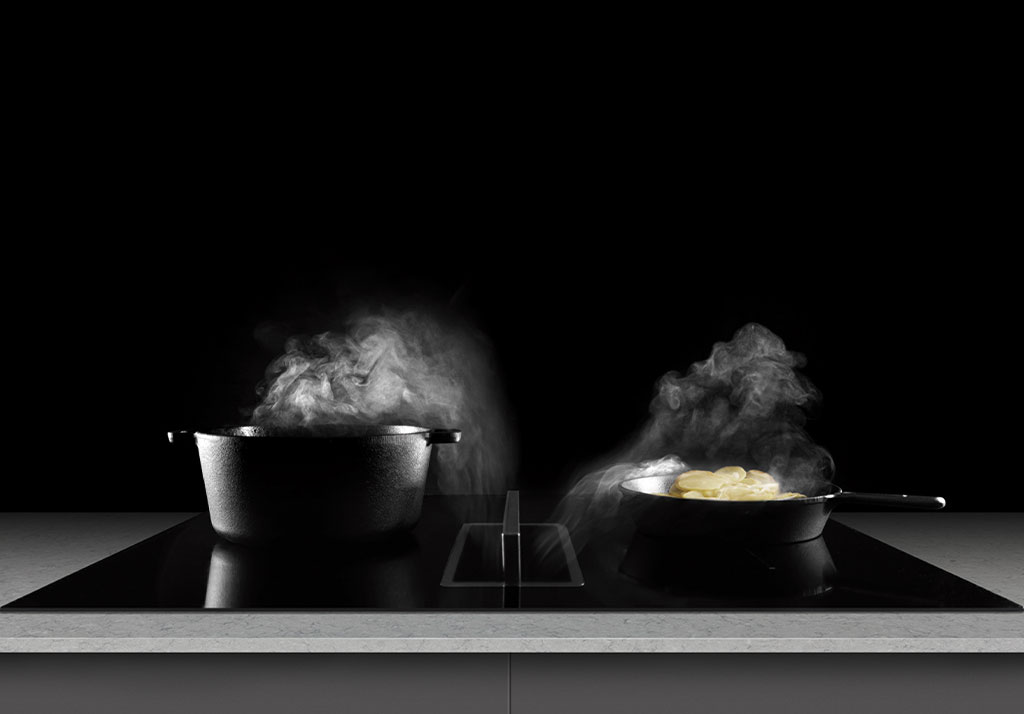

The suction zone draws the fumes towards to the center, getting them inside and producing an attraction effect that extends to a greater height.

Slide control
Quick temperature selection: just touch the desired power level with a finger on the touch screen.
The same happens with the aspiration zone, selecting the desired power.

Maximum flexibility
The hob allows you to associate two cooking zones creating a single area where you can use large pans and pots or cook several dishes at the same time.

Highlights

Technical information

HOB 4 INDUCTION ZONES
• Touch control with Slider.
• 9 power levels in each zone.
• Bridge function.
• Power Boost function.
• Recall function.
• Function "Stop & Go".
• Function Timer.
• Independent timer.
• Heat maintenance.
• Heating function
• Automatic detection of the container.
• Residual heat indicator for each zone.
• Security lock.
Technical information

• Motor silence R1300.
• Touch control.
• Deferred stop (Last Time).
• Filter saturation alarm.
• 9 + 1 power levels.
• Installation flush mounted or inset.
• Possibility of installation in wall-mounted kitchens.
• Recirculation through carbon filters included.
• Liquid tray.
Cooking zones

• Rear Left 210x190 mm. 2100 W. - Power Boost 3000 W.
• Front Left 210x190 mm. 2100 W. - Power Boost 3000 W.
• Rear Right 210x190 mm. 2100 W. - Power Boost 3000 W.
• Front Right 210x190 mm. 2100 W. - Power Boost 3000 W.
• Maximum total power 6700 W.

Models

FLOW 54-780-BK-4-zones
27251

Technical design

780 - Air Outlet 222 x 90 mm
Built-in dimensions: 760 x 490 mm
• Leave a fix space of 40 mm from the wall to the edge of the hood and 50 mm to the cut out.
