Optimal solution for filtering chemical particles

The activated carbon textile filter is a comprehensive and optimal solution for filtering chemical particles in the environment, such as those generated during food cooking. The properties of activated carbon allow the retention of almost 80% of the odors and gases produced during cooking, as well as volatile organic compounds (VOC) particles.

High Density
The high density of activated carbon particles and the microporous surface structure ensure reliable absorption of odors and VOCs (volatile organic compounds).

High Odor Retention
Thanks to their high-density pleated fabric, textile filters have great odor absorption capacity, retaining up to 80% of the cooking odors generated in the kitchen.

ADVANTAGES

  • Easy Installation: Allows for simple installation from the top. Convenient and accessible.
  • Optimal Airflow Efficiency: High filtration system capacity to maintain good air circulation while capturing unwanted particles. Low pressure drop and high air permeability.
  • Filtration Capacity: High capacity for physical or chemical adsorption, ensuring reliable absorption of odors and volatile organic compounds (VOCs). High density of activated carbon particles and microporous surface structure.
  • Long Durability and Maintenance: Powerful liquid drainage system, large internal filtration area, and well-combined inlet and outlet layers. Replacement is recommended once a year to ensure optimal performance.




Technical information

  • Extendable tube included

Models

  • F. Textil Carbón Activo - TC1

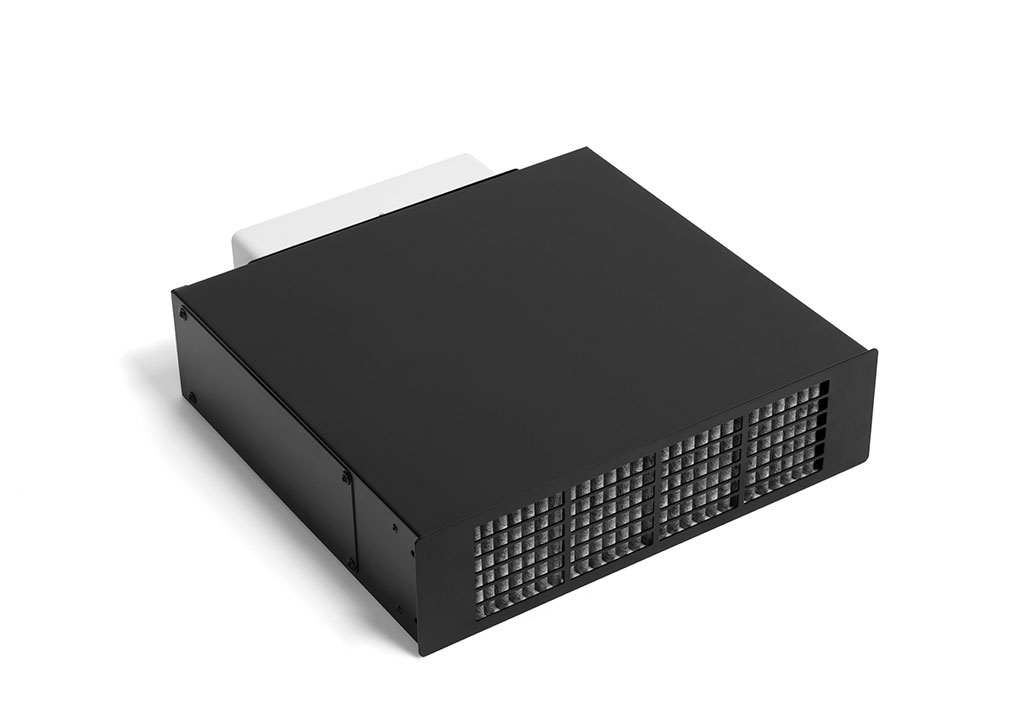

  • Cajón Recirculación Textil (Techo) - TC2
  • Cajón-R Zócalo Textil (100 mm) - TC3
  • Cajón-R Zócalo Textil (60 mm) - TC4
  • Kit Conductos Salida Zócalo - Flow 4.4
  • TC1-TC2 (Recambio)
  • TC3 (Recambio)
  • TC4 (Recambio)
  • T. Carbón Activo - Flow 4.4 - 60 (Recambio)
  • T. Carbón Activo - Flow 4.4 - 78 (Recambio)

Downloads

Technical design

Range Hoods - Filtros textiles de carbón activo - Technical design

Filtro Textil (TC1) - Air Outlet Ø 150
Built-in dimensions: 230 x 230 mm.

Range Hoods - Filtros textiles de carbón activo - Technical design

Filtro Textil (TC2) - Air Outlet 220 x 90 mm.
Built-in dimensions: 326 x 326 mm.

Range Hoods - Filtros textiles de carbón activo - Technical design

Filtro Textil (TC3) - Air Outlet 220 x 90 mm.
Built-in dimensions: 382 x 100 mm.

Range Hoods - Filtros textiles de carbón activo - Technical design

Filtro Textil (TC4) - Air Outlet 220 x 90 mm.
Built-in dimensions: 520 x 60 mm.
